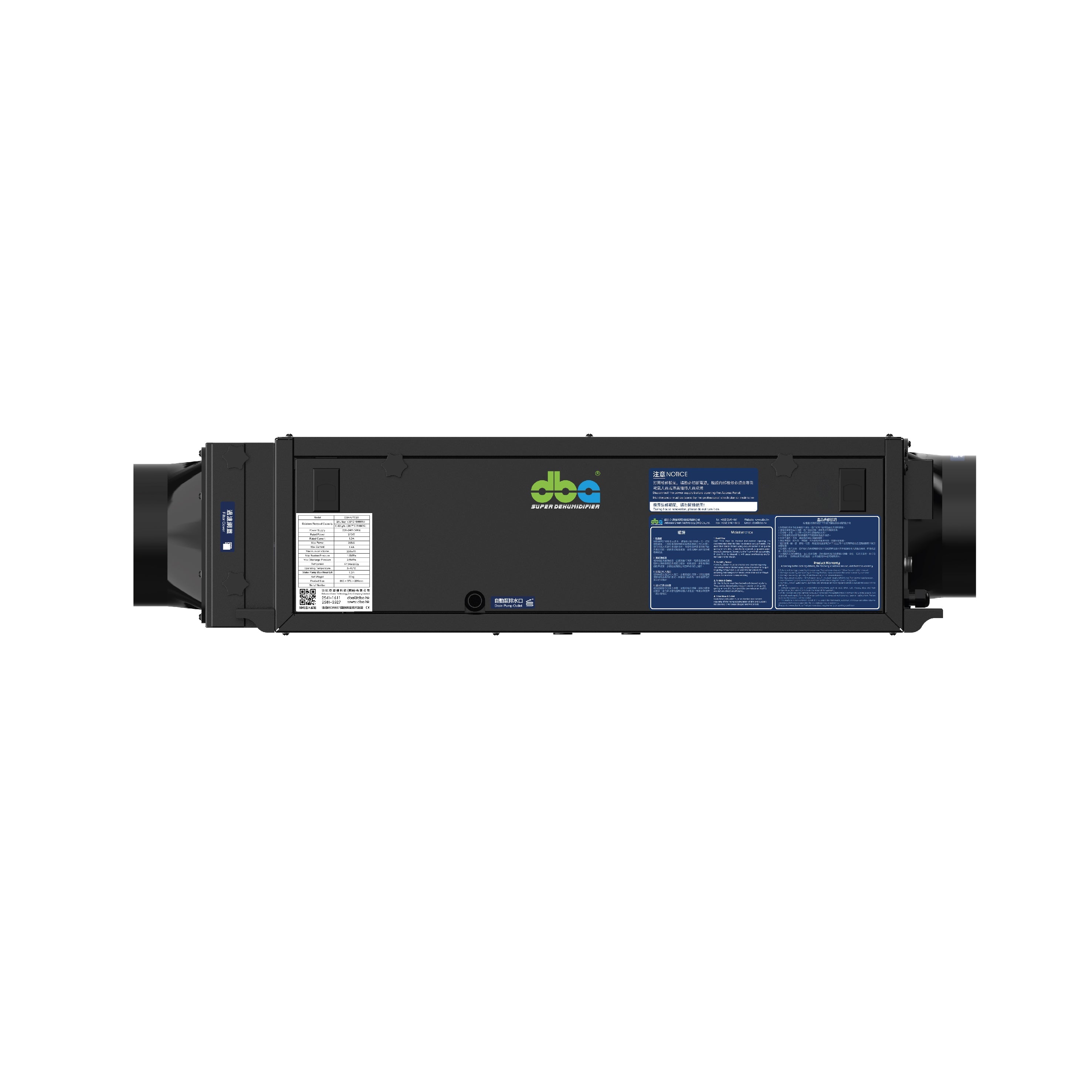

Ultra-Slim Ceiling · UTC Series
20 L/day in 20 cm of plenum.
The smallest of the Ultra-Slim Ceiling range. Designed for studio apartments, single bedrooms, and small offices where ceiling height is at a premium.
At a glance
Hidden ceiling install
Ducted distribution
39–50 dB(A)
99.9% pathogen kill
App and Modbus
Inverter compressor
Technical data
| Dehumidifying Capacity (30°C 80% RH) | 20 L/day |
| Dehumidifying Capacity (26.7°C 60% RH) | 9.9 L/day |
| Cover Area | 200 – 400 sq ft |
| Airflow | 220 CMH |
| Sound Pressure Level (3 m) | 39 dB(A) |
| Static Pressure | 80 Pa |
| Rated Power | 196 W |
| Max. Power | 300 W |
| Voltage | 220–240V 50Hz |
| Drain Height | 1.8 m |
| Air Outlet/Inlet Flange | ⌀146 mm |
| Refrigerant | R134a / 0.23 kg |
| Operating Temperature | 5 – 40°C |
| Weight | 28 kg |
| Dimensions (L × W × H) | 865 × 376 × 200 mm |
Inside the unit
Standard across the Ultra-Slim Ceiling series.
